AGO STRAW BALE SHIFTER TINE, SPEAR OF HAY BALE LOADER

Farm hay bale loader tine, agri straw bale shifter wearing parts, different sizes and fits different brands
Availability:
Quantity:
Inquire

Product Description

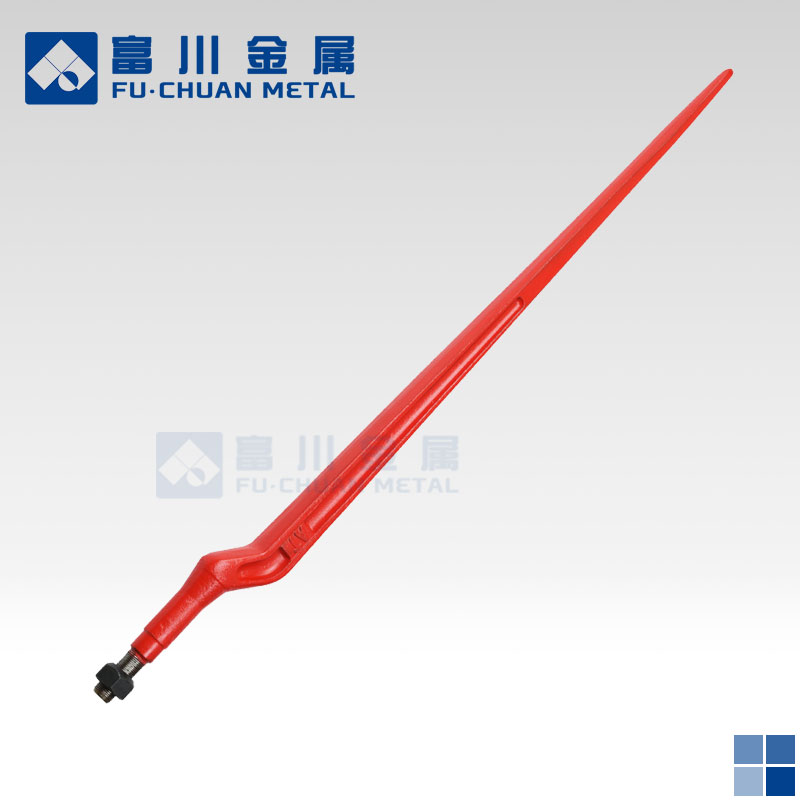

Z-shape Hay Bale Loader Tine/Spear

farm hay bale tine

Code

Shape of

the Tine

                                                              Dimension
Φ L F D
HTDZ001 Z in square 36 825 20 45
HTDZ002 Z in square 36 810 22 37
HTDZ003 Z V-groove 36 880 22x1.5 41
HTDZ004 Z V-groove 36 880 22x1.5 50

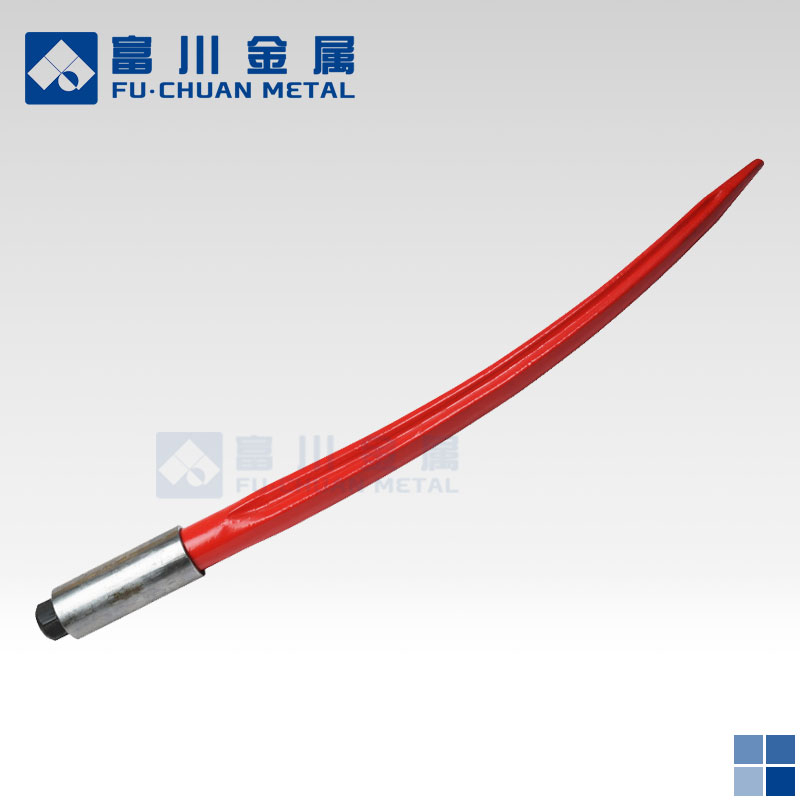

Cambered Hay Bale Loader Tine/Spear

hay loader spear parts of cambered hay bale tine

Code

Shape of

the Tine

                                                              Dimension
Φ L F D
HTDZ005 Z in square 36 600 20x1.5 47
HTDZ006 Z in square 36 740 22x1.5 42
HTDZ007 Z V-groove 36 800 22x1.5 40
HTDZ008 Z V-groove 36 680 21.5x1.5 40

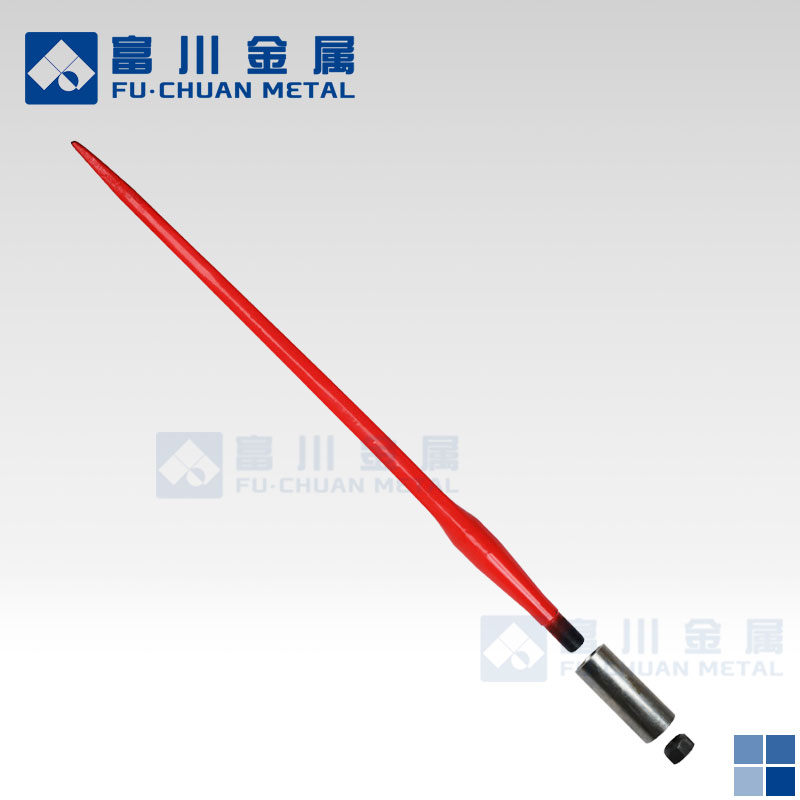

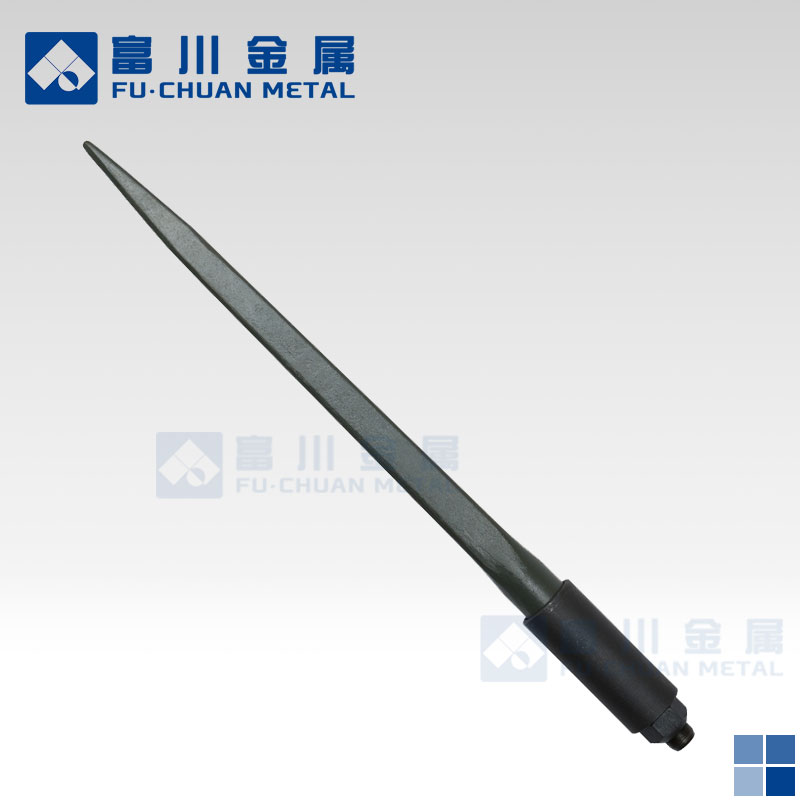

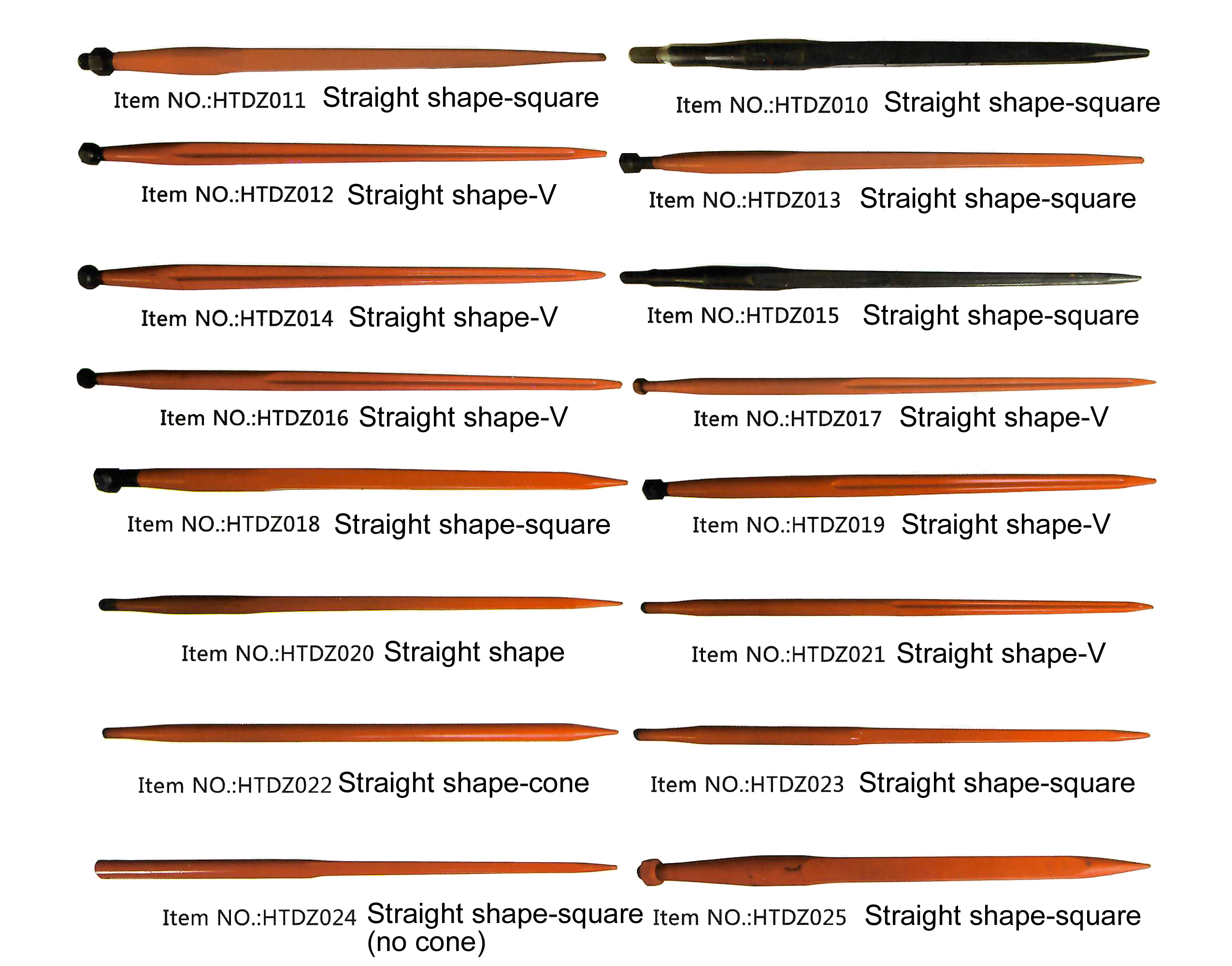

Straight Hay Bale Loader Tine/Spear

straight shape hay bale tine and spears

Code

Shape of

the Tine

                                                              Dimension
Φ L F D
HTDZ010
 straight in square 36 600 20x1.5 35
HTDZ011 straight in square 36 680 22x1.5 40
HTDZ012 straight V 36 810 22x1.5 40
HTDZ013 straight in square 36 820 20x1.5 60
HTDZ014 straight V 36 800 22x1.5 37
HTDZ015 straight in square 36 805 20x1.5 34
HTDZ016 straight V 36 1000 22x1.5 40
HTDZ017 straight V 36 1100 22x1.5 40
HTDZ018 straight in square 45 880 30x2 70
HTDZ019 straight V 42 1000 28x1.5 47
HTDZ020 straight 45 1250 30x2 54
HTDZ021 straight V 42 1250 30x2 54
HTDZ022 straight cone 45 1250 28x1.5 50
HTDZ023 straight in square 1250

L:1250  L1: 727

 30x2 54
HTDZ024

straight in square(no cone)

Φ:45   Φ1:14

 1220

HTDZ025 straight in square 50 825 28x1.5 50

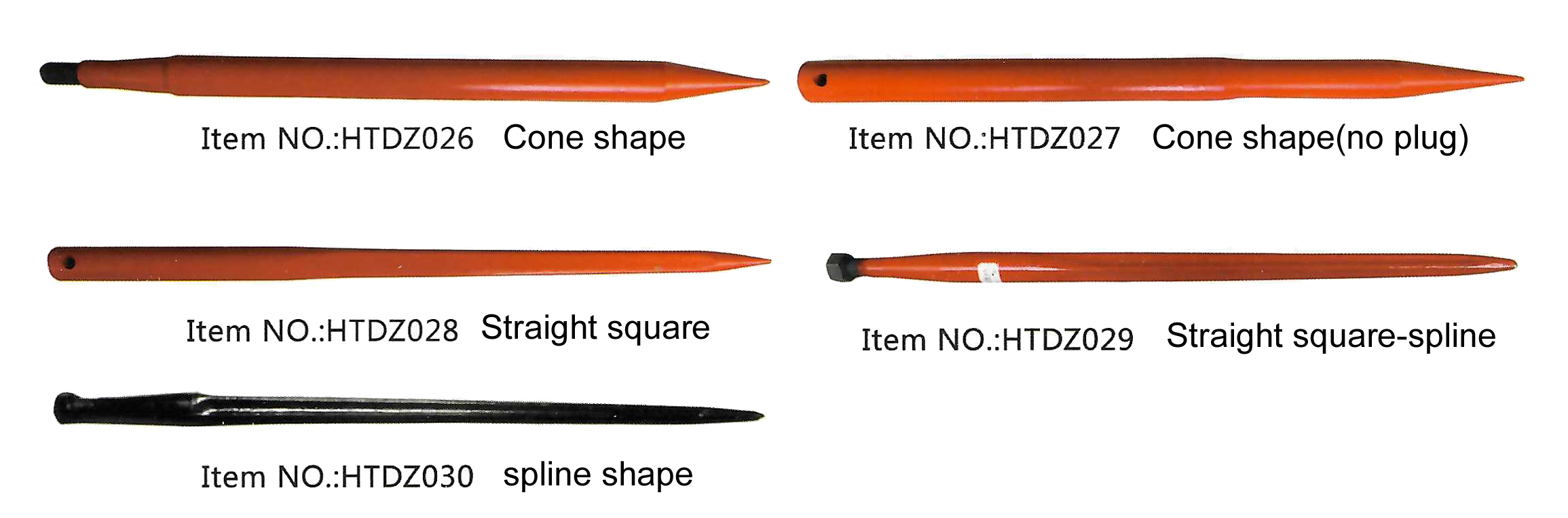

Straight Cone Shape Hay Bale Spear

cone shape hay bale spear

Code

Shape of

the Tine

                                                              Dimension
Φ L F D
HTDZ026 straight cone 50 885 28x1.5 50
HTDZ027 cone shape(no plug) Φ:50   Φ1:16 845

HTDZ028 straight square Φ:45   Φ1:16 910

HTDZ029 straight square-spline 36 80 22x2 40
HTDZ030 spline shape 36

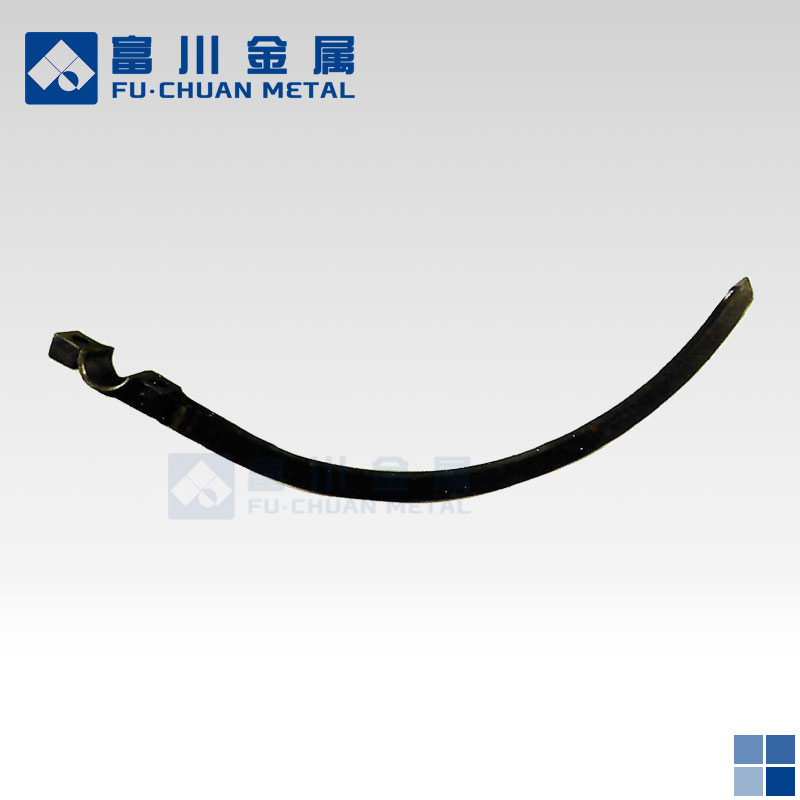

Ago Baler Needle

replacement part farm baler needle

Code

Shape of

the Tine

                                                              Dimension
Φ L F D
HTDZ009 combered
750
