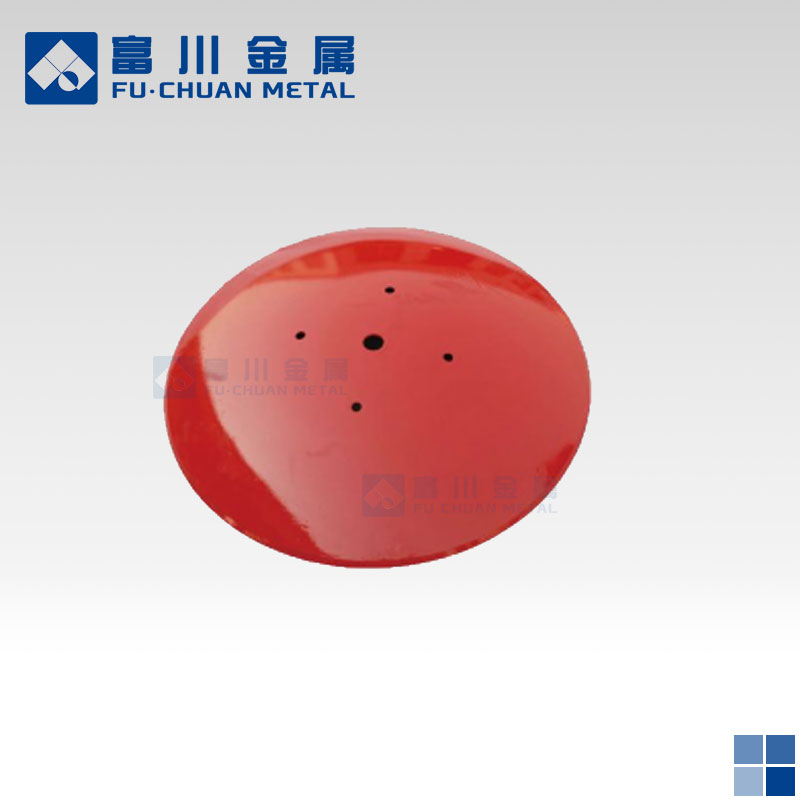

Conical blades ago discs

Material applies 65Mn Spring Steel and boron steel. Heat treatment hardness is diferent according to material manganing and giving hardness 38-45HRC for boron material. Boron steel hardness is 45-48HRC. Customized material is avaible to requirement.
Machining disk diameter from 12” to 40” , thickness from 3mm to 12mm. The shapes offer notched, smoothed, flat, waved and so on. We are capable to produce aoocording to customers' design.

Availability:

Quantity:



Inquire

Product Description

Product Description

AGO Farm Plough Disc Blades

Machining disk diameter from 12” to 40” , thickness from 3mm to 12mm. The shapes offer notched, smoothed, flat, waved and so on. We are capable to produce aoocording to customers' design.

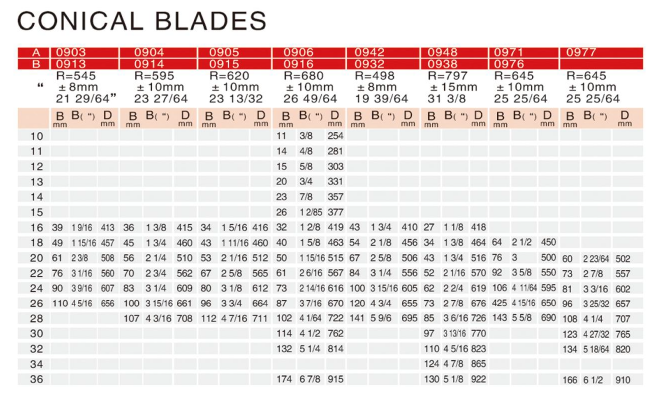

ago conical blade for plough wearing parts

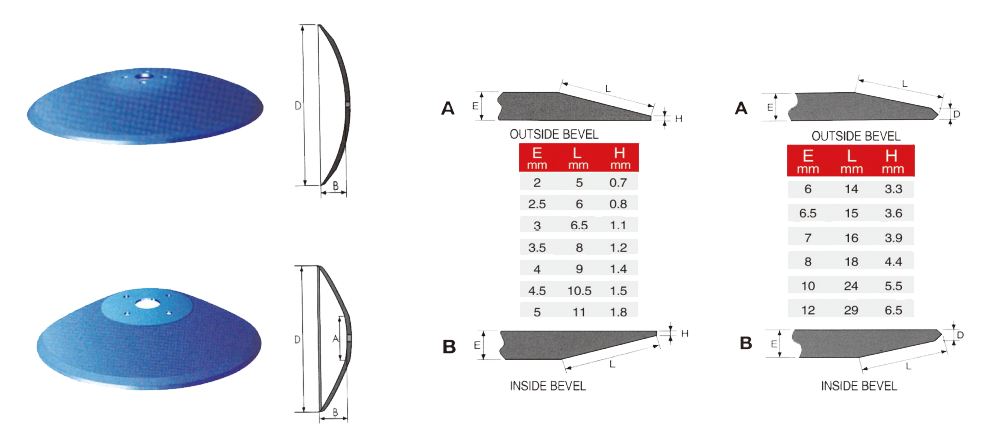

CONCAVITY FEATURES

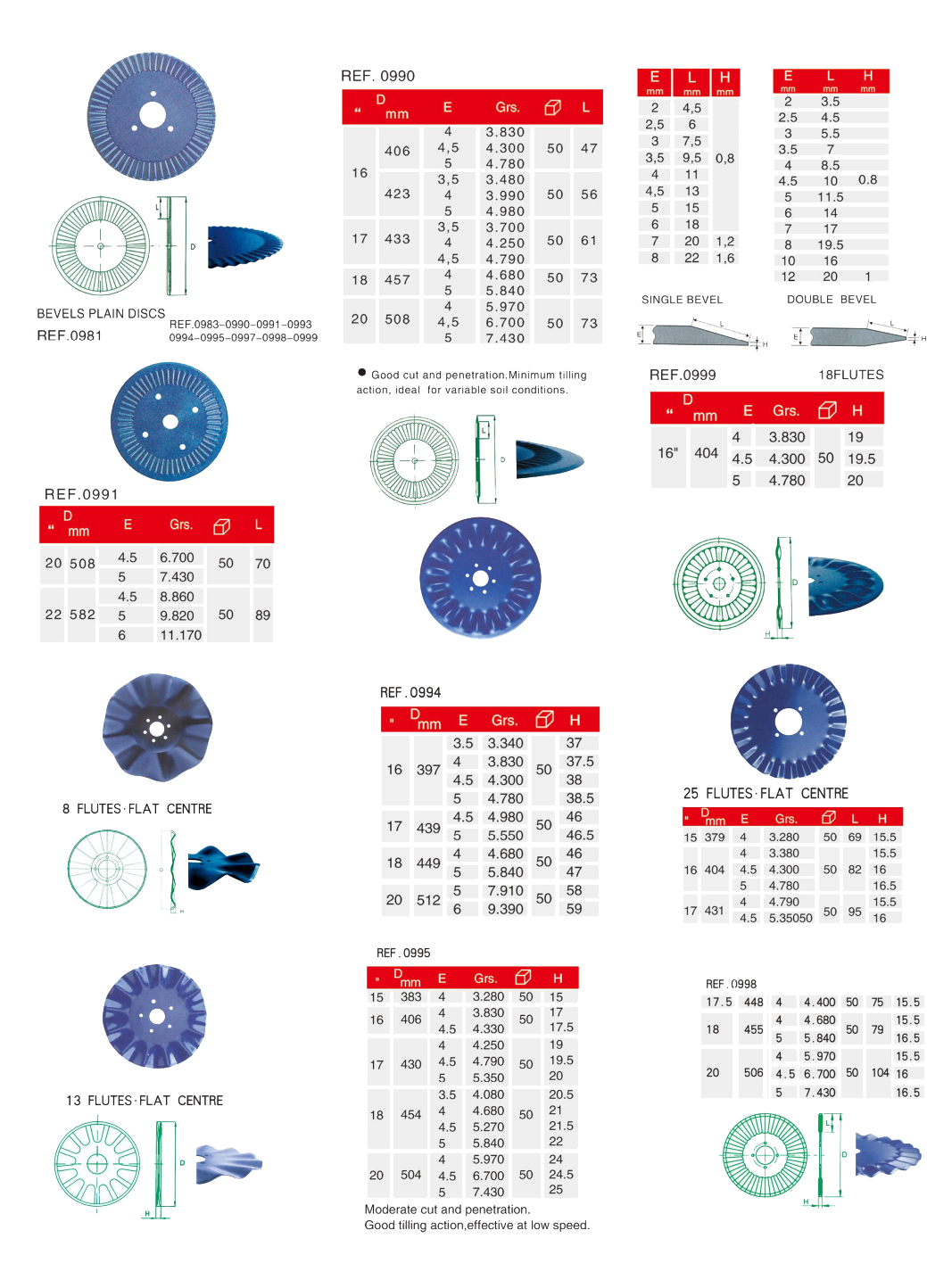

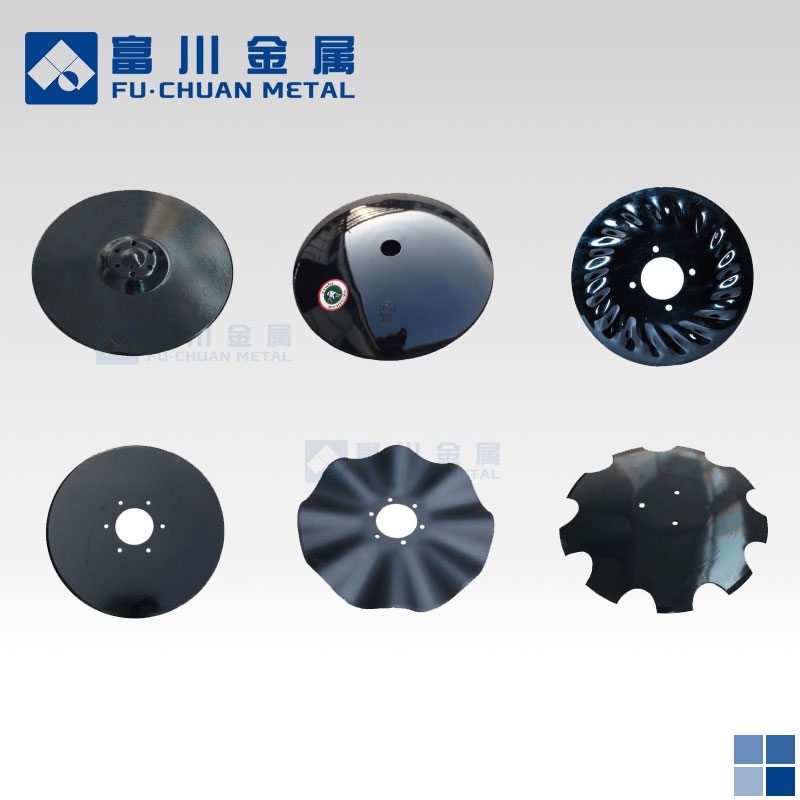

ago farm plough disc blade with different shapes

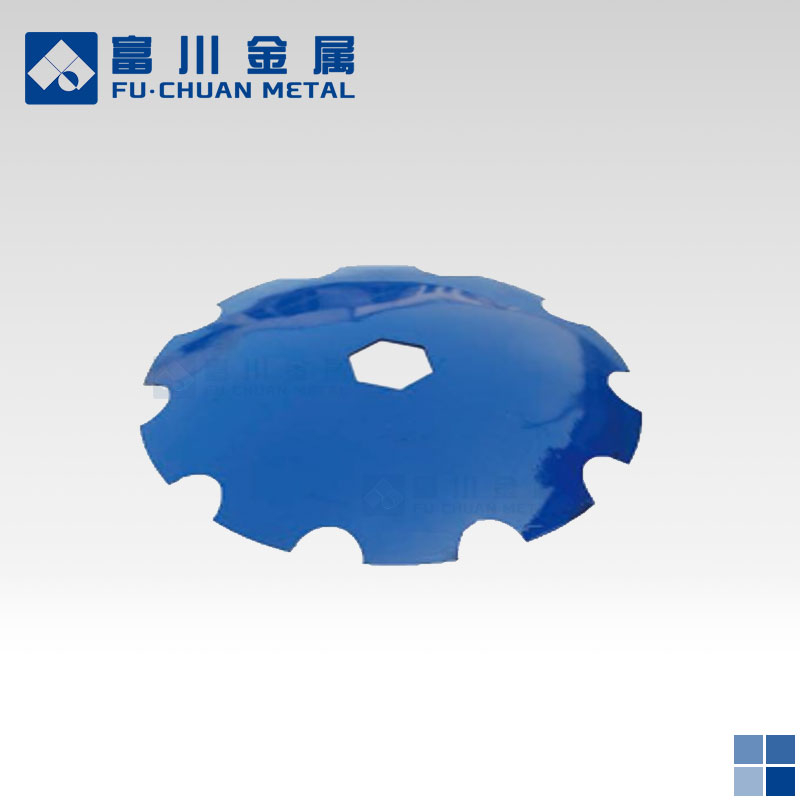

Plan Discs / Notched Discs

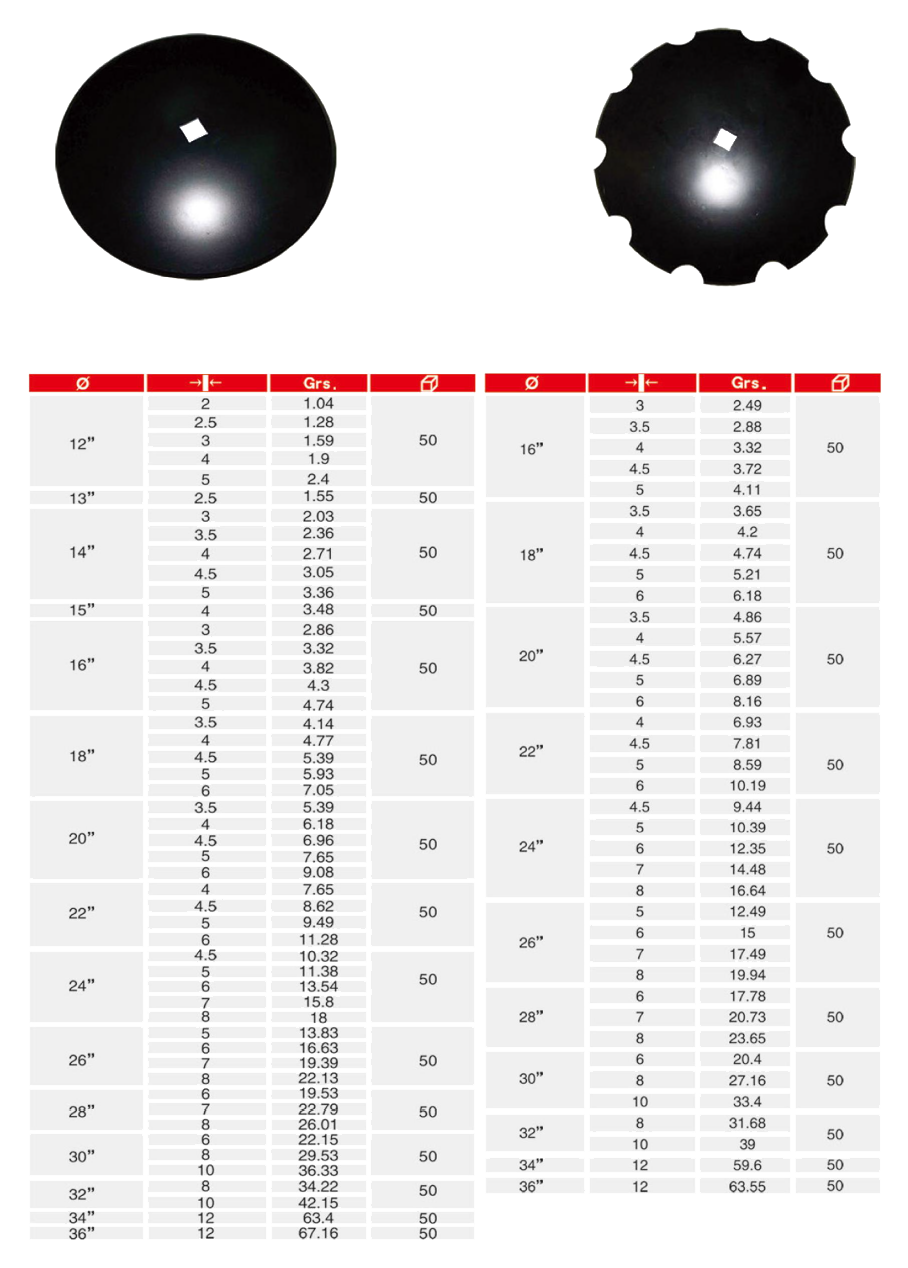

farm plough plain discs andnothched discs gauge list
