Product Description

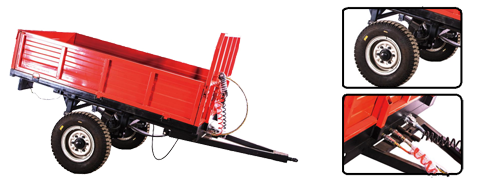

TSOC Two-wheel Farm Trailer( tipping trailer)
| Model | Unit | TSOC-3 | TSOC-3X | TSOC-4 | TSOC-4X |
| Name | Trailer | Tippig trailer | Trailer | Tipping trailer | |
| Fitted power | hp | 30-40 | 30-40 | 40-50 | 40-50 |
| Box size | m | 2.5x1.6x0.45 | 2.5x1.6x0.45 | 3x2x0.45 | 3x2x0.45 |
| Loading weight | kg | 3000 | 3000 | 4000 | 4000 |
| Brake | Machining brake | ||||

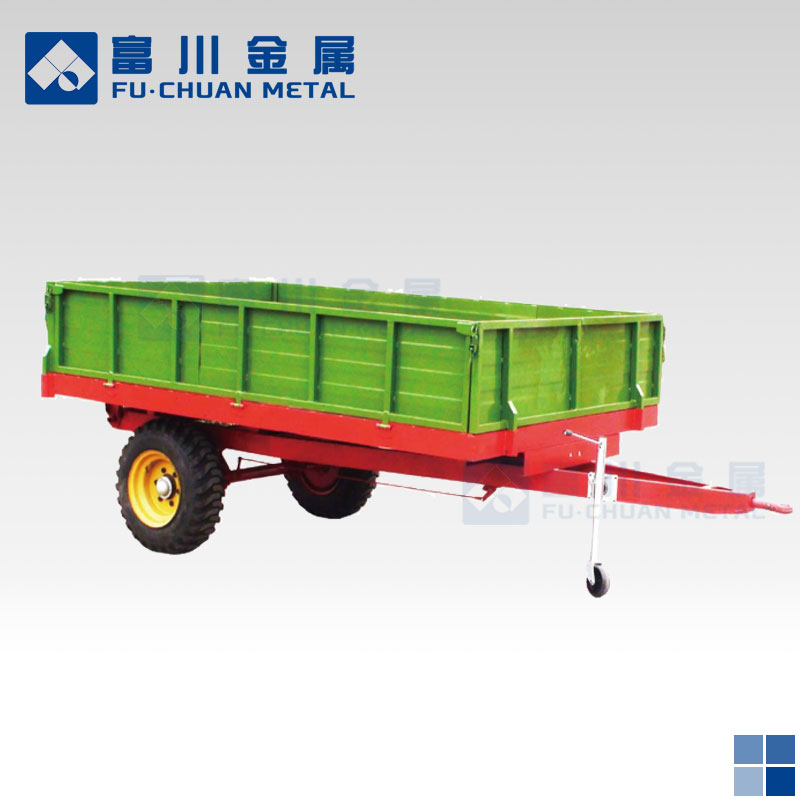

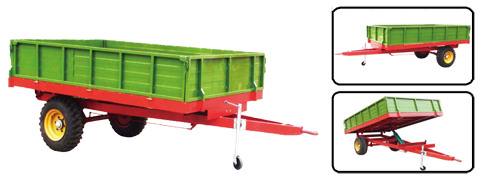

7C series Single Axle Ago Trailer
| Model | Unit | 7C-1.5/7CX-1.5 | 7C-2/7CX-2 | 7C-2.5/7CX-2.5 | 7C-3/7CX-3 | 7C-4/7CX-4 |
| Name | Trailer/Tipping trailer | |||||
| Fitted power | hp | 15-20 | 20-25 | 25-30 | 25-35 | 30-40 |
| Box size | m | 2x1x0.45 | 2.2x1.2x0.45 | 2.5x1.5x0.5 | 2.6x1.6x0.55 | 2.8x1.6x0.55 |
| Loading weight | kg | 1500 | 2000 | 2500 | 3000 | 4000 |
| Brake | Machining brake | |||||

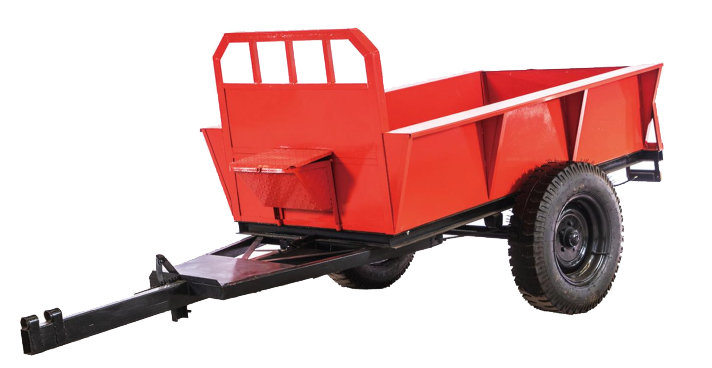

7C Series of Farm Trailer for Hand Tractor
| Model | Unit | TS7C-1.0 | TS7C-1.5 |
| Weight | kg | 220 | 260 |
| Fitted power | hp | 8-15 | 12-18 |
| Carriage size | mm | 1700x900x300 | 2000x1000x400 |
| Loading weight | kg | 1000-1300 | 1500-1800 |
| Linkage | Trailed | ||

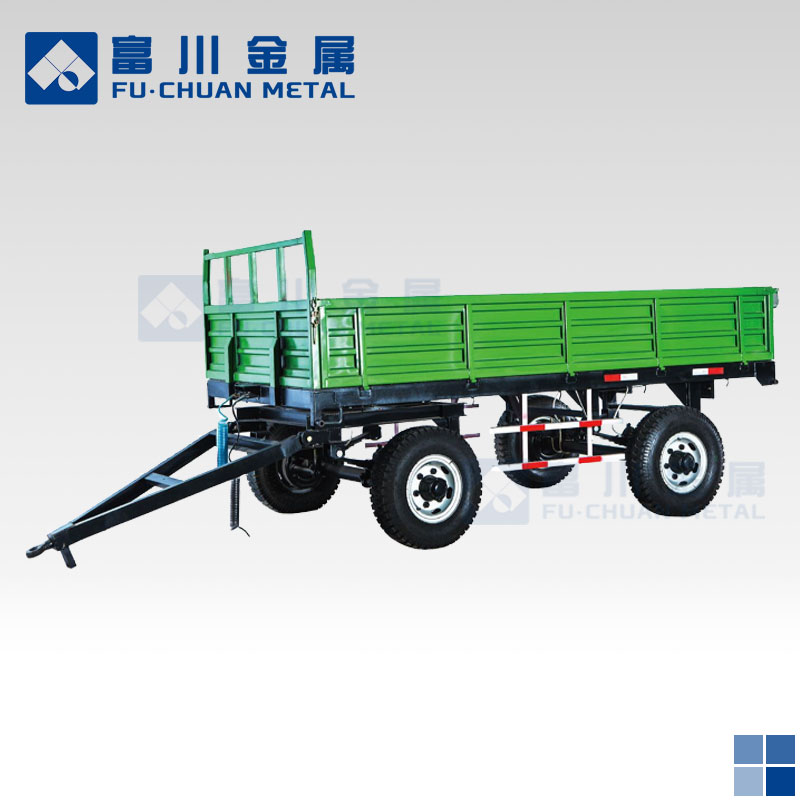

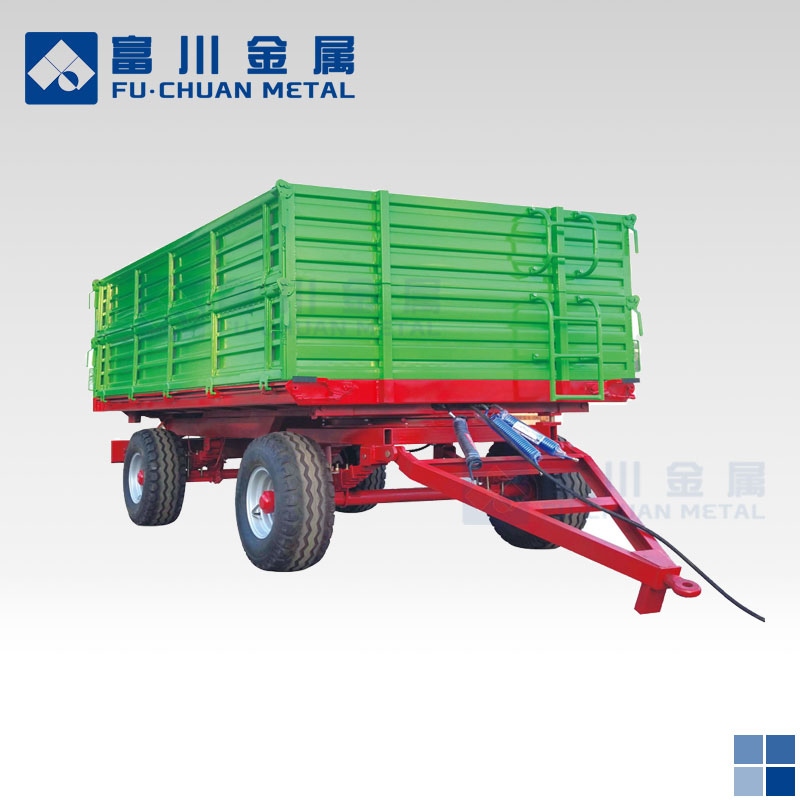

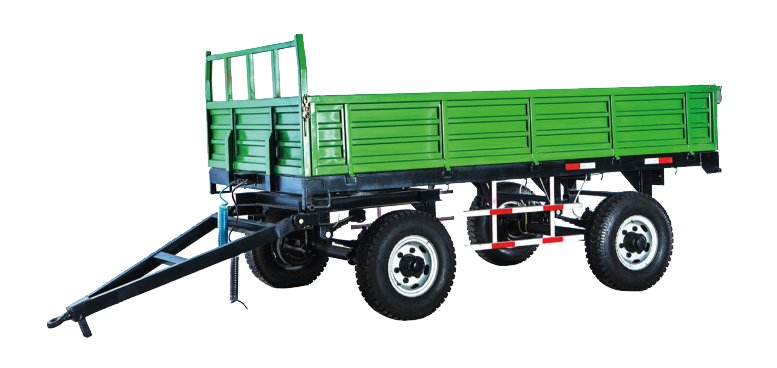

7C Series of Double-axles Farm Trailer
| Model | Unit | 7CX-3 7C-3 | 7CX-4 7C-4 | 7CX-5 7C-5 | 7CX-6 7C-6 | 7CX-7 7C-7 | 7CX-8 7C-8 | 7CX-9 7C-9 | 7CX-10 7C-10 | 7CX-12 7C-12 |
| Loading Weight | kg | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | 12000 |
| Carriage size | m | 3.4x1.8x0.5 | 3.4x1.9x0.5 | 3.5x1.9x0.5 | 3.8x2x0.5 | 4x2x0.5 | 4.3x2x0.5 | 4.8x2x0.5 | 5.2x2x0.5 | 5.8x2x0.5 |
| Tyre | 750-16 | 750-16 | 825-16 | 825-16 | 900-20 | 900-20 | 900-20 | 900-20 | 11.00-20-18PR | |
| Matched Power | hp | 25-30 | 30-40 | 40-50 | 50-55 | 55-60 | 60-65 | 65-70 | 80-100 | 100-120 |
| Brake | Air brake | |||||||||

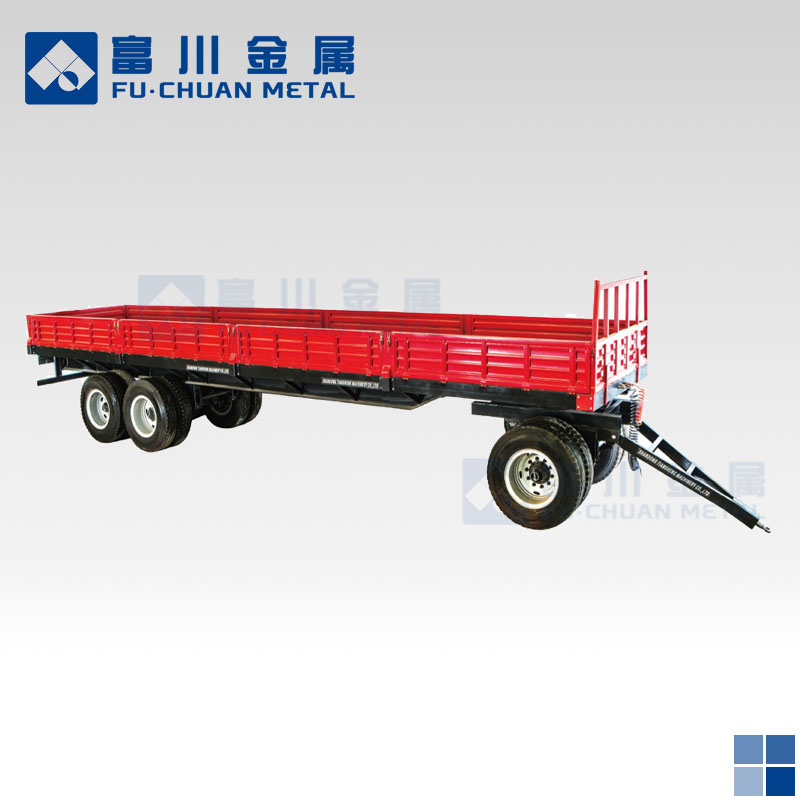

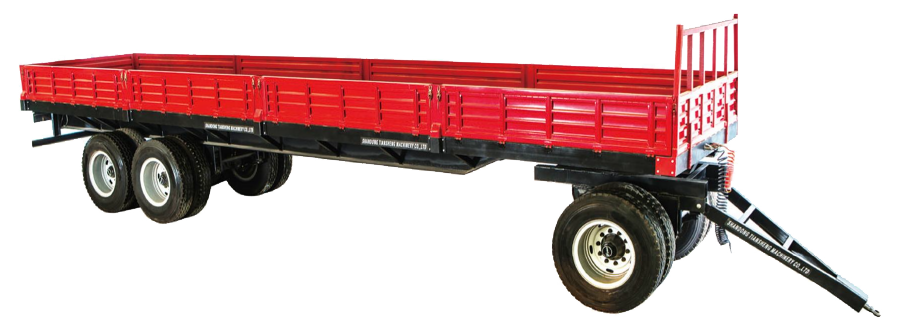

TS7C Series of Farm Trailer
| Model | Unit | TS7C-20 | TS7C-20 | TS7C-20 | TS7C-20 |
| Size of whole device(LxWxH) | mm | 9700x2600x2580 | 10800x2600x2580 | 12300x2600x2580 | 13500x2550x2580 |
| Loading Weight | kg | 20000 | 30000 | 40000 | 50000 |
| Carriage size | mm | 8000x2500x550 | 9000x2500x550 | 10500x2500x550 | 11500x2400x550 |
| Wheel distance | mm | 2500 | 2500 | 2500 | 2500 |
| Qty of axle | 2 | 3 | 3 | 3 | |
| Qty of tyre | 8 | 12 | 12 | 12 | |
| Brake | Air brake | ||||

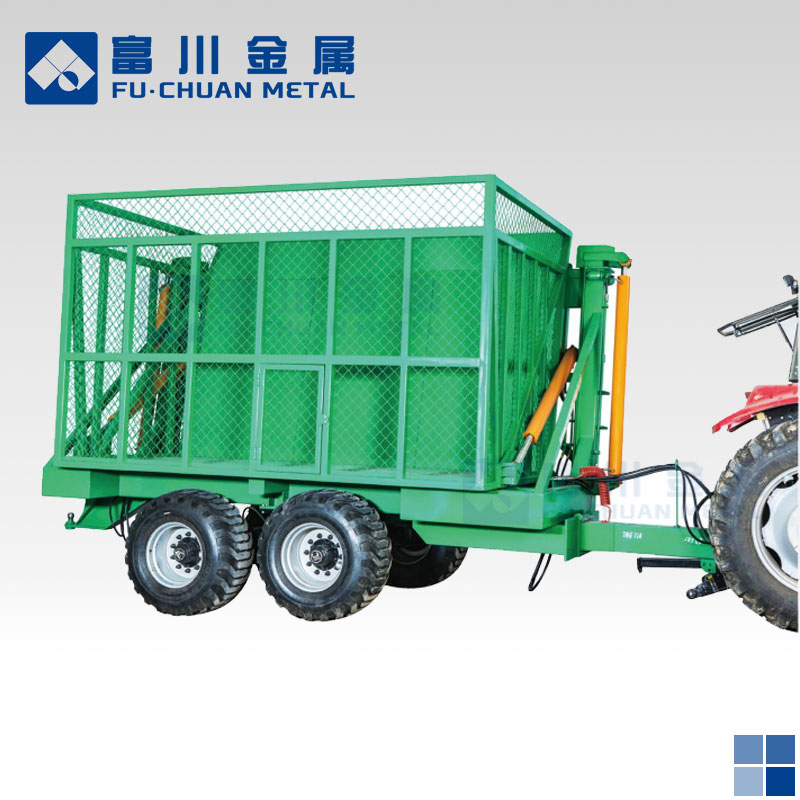

7CX(SC) Series of Sugarcane Trailer
the trailer is designed for sugarcane harvest transportation in Mexico, Brizal and Thailand area. Good air circulation, high loading capacity meet special crop collection and delivery.
| Model | Unit | 7CX(SC)-10 |
| Axle | Tandem type | |
| Fitted power | hp | >=160 |
| Volume Cap. | L | 24 |
| Loading weight | kg | 1000 |
| Tyre | 600/50-22.5 |
