Product Description

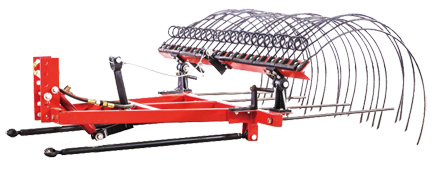

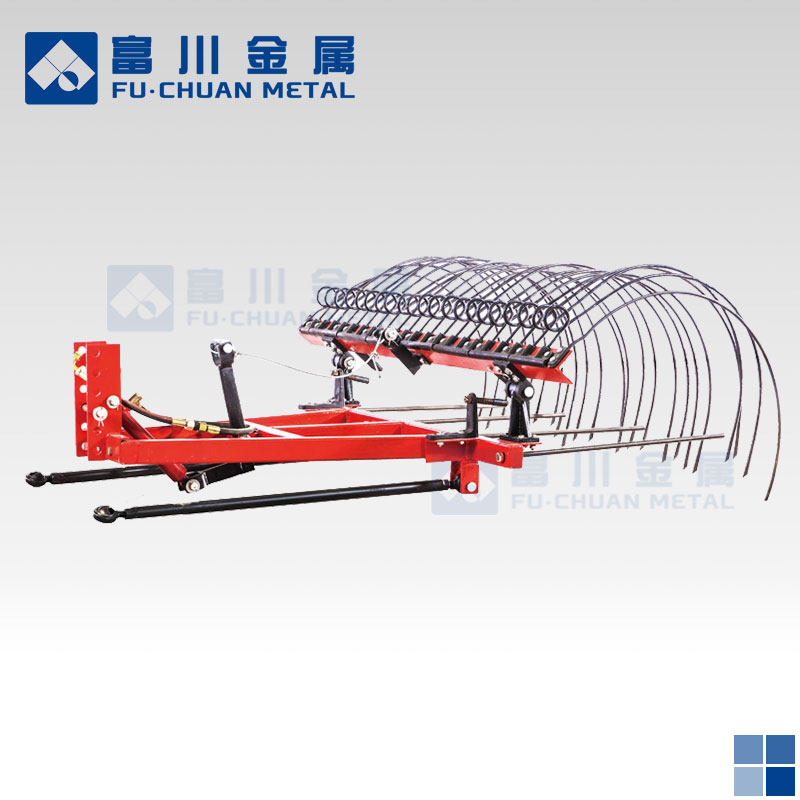

9GL Straw Rake
The hay rake is equipped with the small four wheel tractors and the machine is used forcollecting grass after cuting.The machine adopts hydraulic turning,the spring steel tines and othercomponents.During the time of work,the hydraulic turing mechanism can make the tine turn whole andunload the pasture grass immediately.
| Model | Unit | 9GL-1.4 | 9GL-1.6 | 9GL-1.8 | 9GL-2.1 |
| Raking width | m | 1.4 | 1.6 | 1.8 | 2.1 |
| Overall weight | kg | 90 | 100 | 110 | 120 |
| Matched power | hp | 12-20 | 15-25 | 18-30 | 20-40 |
| Linkage | Standard three point mounted | ||||

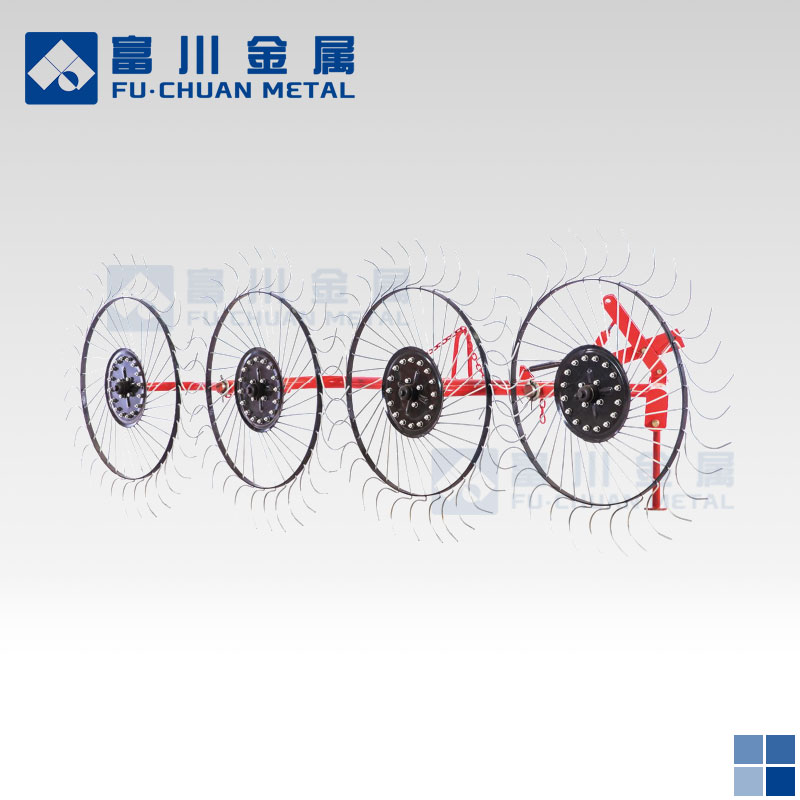

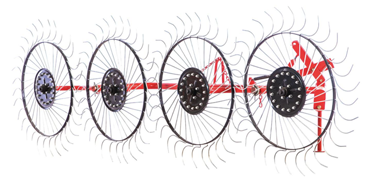

9GLW Rotary Wheel Rake
The 9GLW rake machine adopts the traditional double-sided structure design. it is a model withhigh cost performance. The transport folding is very light and simple, which is very suitable for smalgrass.The width of the blade is simple and fast, and the width is perfect.The sturdy suspension frame canmeet more of the supporting horsepower, and can gather the sparse herbage, the residual effects of straw,and the residual film in the soil through the enciphered teeth.
| Model | Unit | 9GLW-4 |
| Number of wings | piece | 4 |
| Wing diameter | m | 1.1 |
| Weight | kg | 115 |
| Working speed | km/h | 20 |
| Matched power | hp | 18-30 |

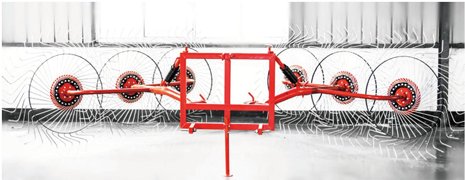

9GLTS Rotary Wheel Rake
| Model | Unit | 9GLTS-3.0 | 9GLTS-4.0 | 9GLTS-4.8 |
| Raking width | m | 3.0 | 4.0 | 4.8 |
| Overall weight | kg | 150 | 295 | 345 |
| Qty of wheels | piece | 4 | 6 | 8 |
| Matched power | hp | 20-30 | 30-40 | 40-50 |
| Linkage | Standard three point mounted | |||

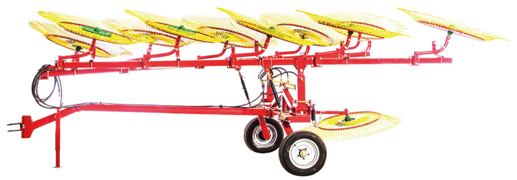

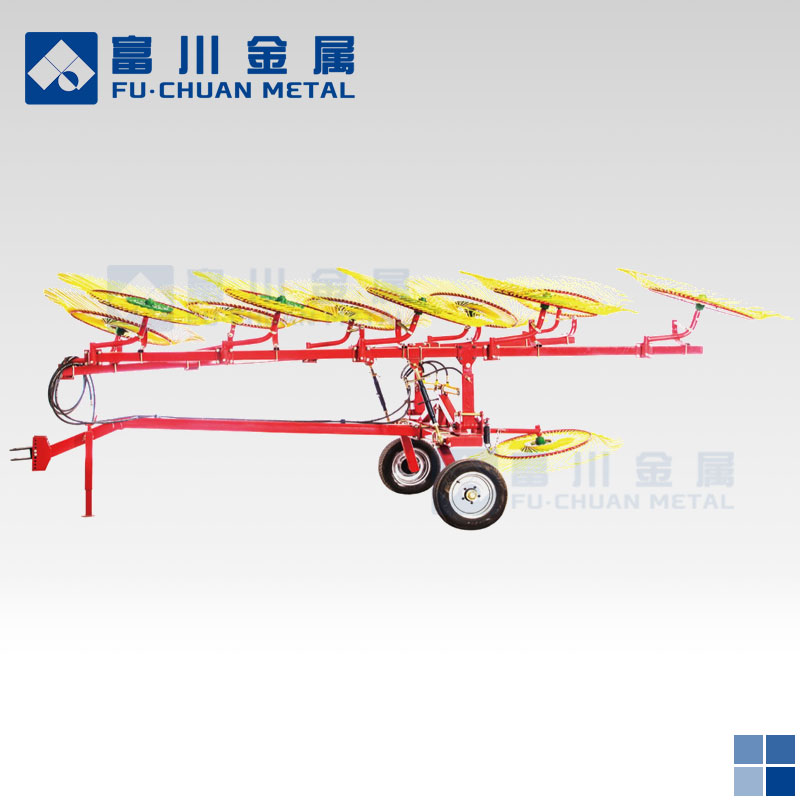

TSWR Rotary Wheel Rake
| Model | Unit | TSWR-11 | TSWR-13 |
| Raking width | m | 7400 | 8200 |
| Overall weight | kg | 1100 | 1300 |
| With draw width | m | 1500-2000 | 1500-2000 |
| Matched power | hp | 80-100 | 90-120 |
| Dia. of wheels | mm | 1450 | 1450 |
