Aluminium collapsible tube coating flexibility and adhesion force test device

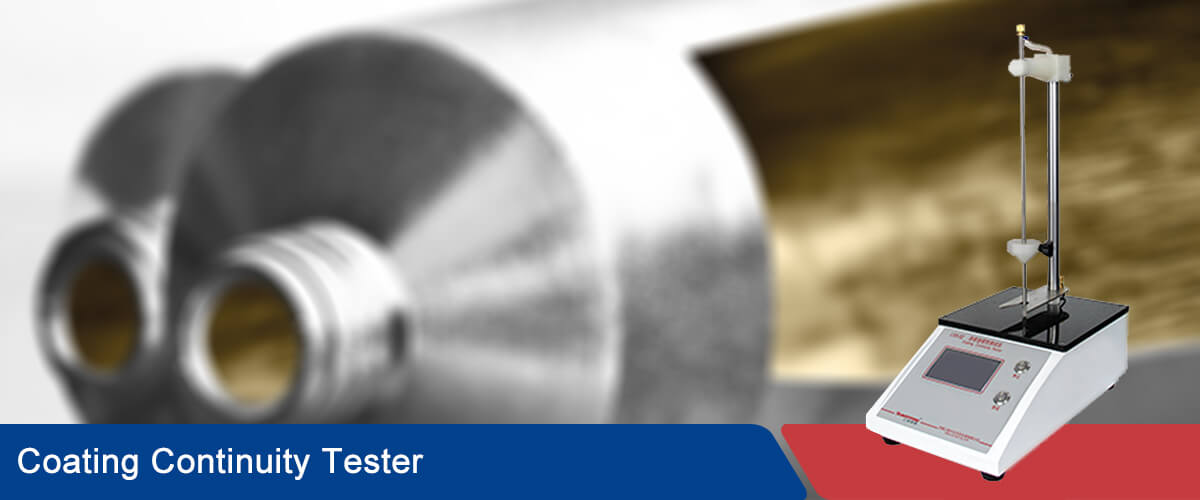

Pharmaceutical aluminium tube continuity tester is used for contunuity test of inner coating of aluminium tubes used for pharmaceutical packaging, food packaging,etc.

Tech Parameters

• Aluminium tube diameter: 8-45mm

• Aluminium tube body length: 35-250mm

• Test tolerance: ±0.1mA

• Measuring Range: 0-200mA

• Voltage: 220V

• Dimension of tester: 370mmx220mmx560mm

• Weight: 4.5kg

• Relative Humidity: <=80%

Applicable Test on

• Pharmaceutical Aluminium Tube

• Rigid Aluminium Tube

• Food Collapsible Tube

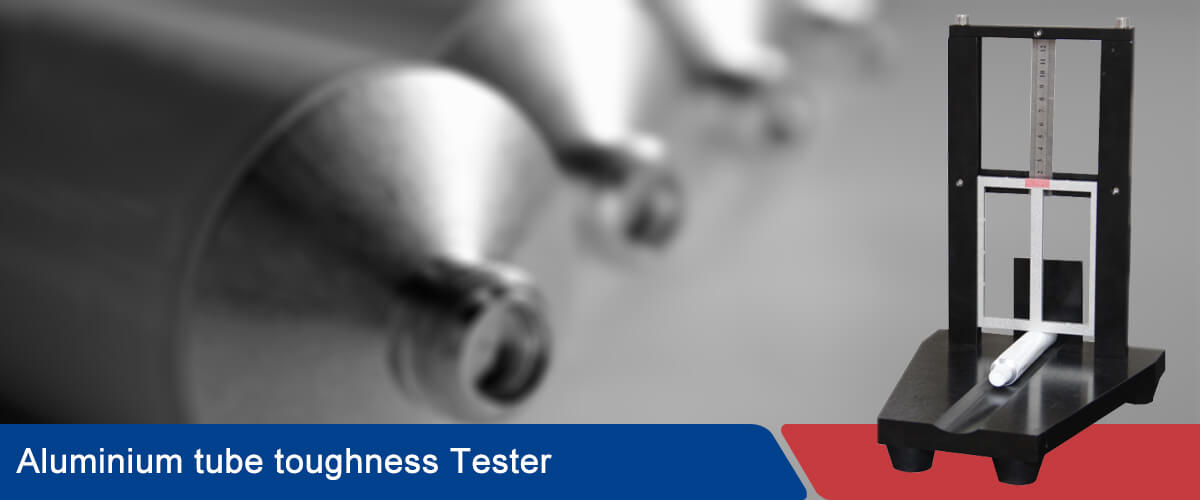

The toughness tester for pharmaceutical aluminium tubes is mainly used for mechanical property test and tube toughness test.

Tech Parameter

Aluminium tube diameter: 10mm,13.5mm,16mm,19mm,22mm,25mm, 28mm-45mm

Slide damper weight: 70.0±1g

Measuring range: 0-80mm

Dimesion of tester: 255mmx200mmx300mm

Weight: 9kg

Test Measures

Put the aluminium tube onto the positioning groove, and the end of aluminium tube should get in touch with pawl, loose the slide damper and slide to the body of aluminium tube. Record the calibration on the top of ruler. The roughness test result should apply for the standard.

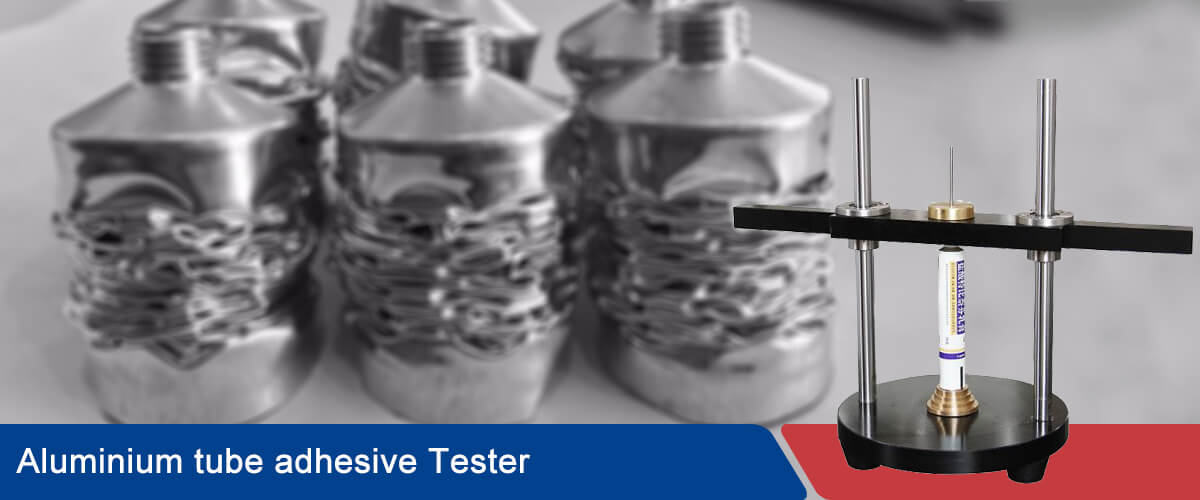

Aluminium tube adhesive tester is a special test device used for flexibility and adhesion test of pharmaceutical aluminium tube inner coating. And the test result should apply to related collapsible tube quality standards.

Tech Parameter

Aluminium tube diameter: 10mm,13.5mm,16mm,19mm,22mm,25mm,28-45mm

Inner column diameter: 3.5mm,4.5mm,5.5mm

Supporting ring: cooper

Dimension of device: 395mmx200mmx320mm

Weight: 8.5kg

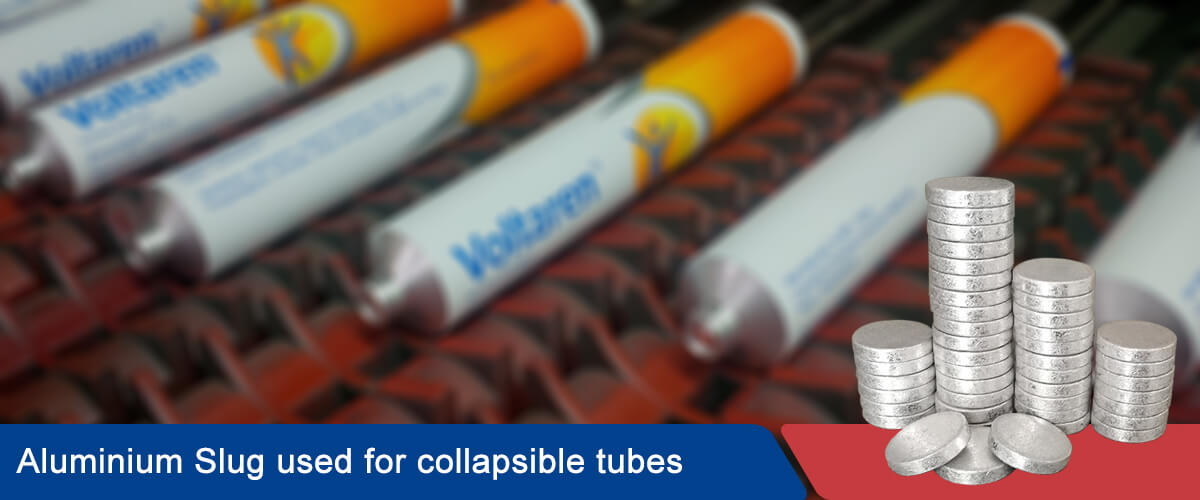

Fuchuan Metal is specialized in aluminium slug production and we are dedicated to provide complete service and supplying to our customer from aluminium tube makers. The aluminium slugs produced by Fuchaun Metal include 1050 1070 alloy as thumb products which has built good words-of-fame from tens of countires.

Tech Parameters

Alloy: 1050, 1070, 3003, 1100, 6063

Aluminium purity: 99.5% 99.7%

Hardness: 18~23HB

Shape: round close end, round with hole, concave, dome, special shapes

Application: aluminium collapsible tube, aluminium aerosol can, cartridge parts

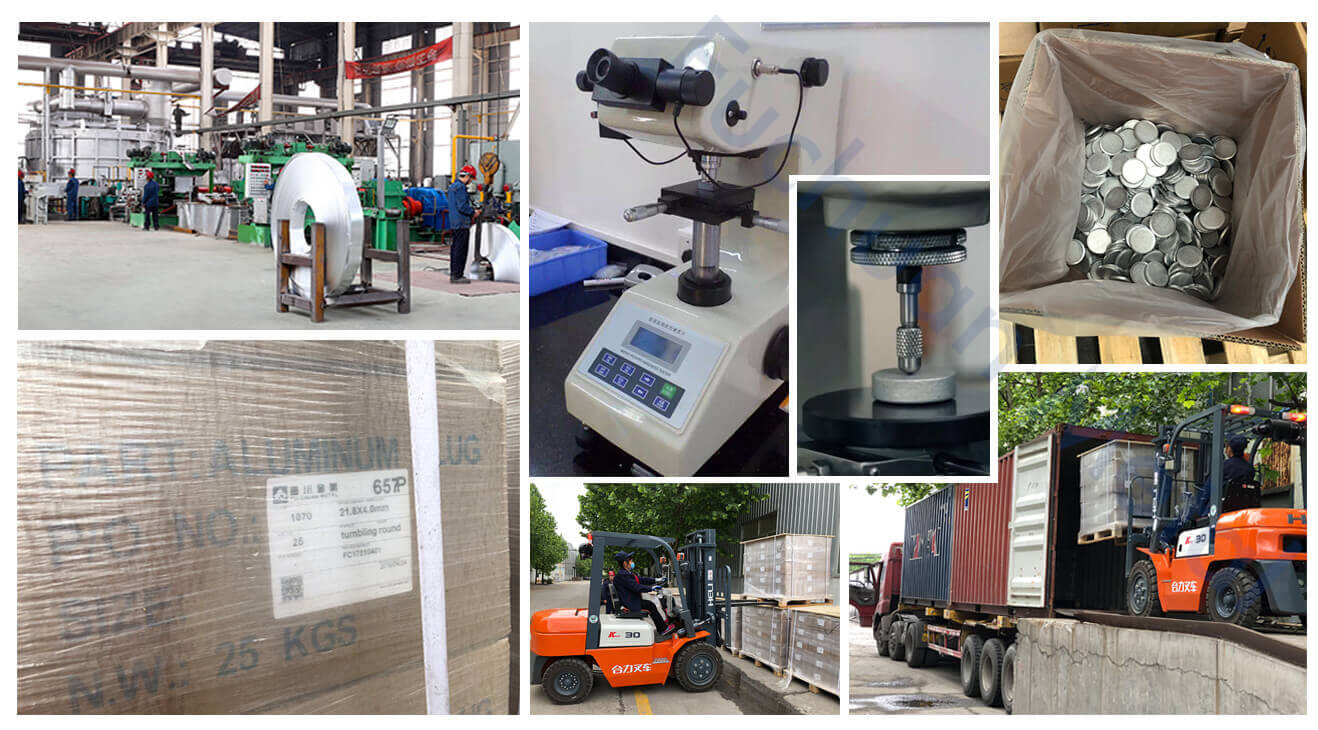

Quality&Delivery gallery
