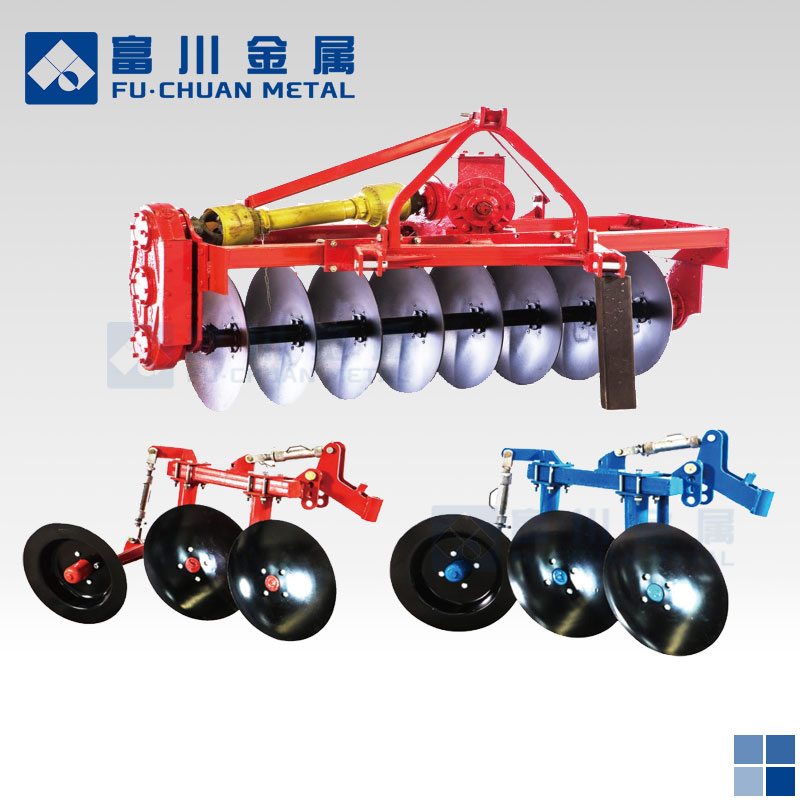

SERIES OF AGO FARM DISC PLOUGH

1. The one-way mounted disc plough suitable for ploughing up the cultivated land as well as virgin land, especially on highyield’s manure land, wheat and rice stubble fields.
2. The 1LYX tube disc plough mounted with tractor is suitable for the field with grasses, straw and stems of crops or plants, big soil resistance and stones and breakbrickbat, etc.
3. Two-way disc plough products for tillage on dry cultivated or fallow land.
4. Tractor driven disc plow designed both for paddy field and dry-land.
5. Tractor disc plow designed specifically for paddy field.
Availability:
Quantity:

Product Description

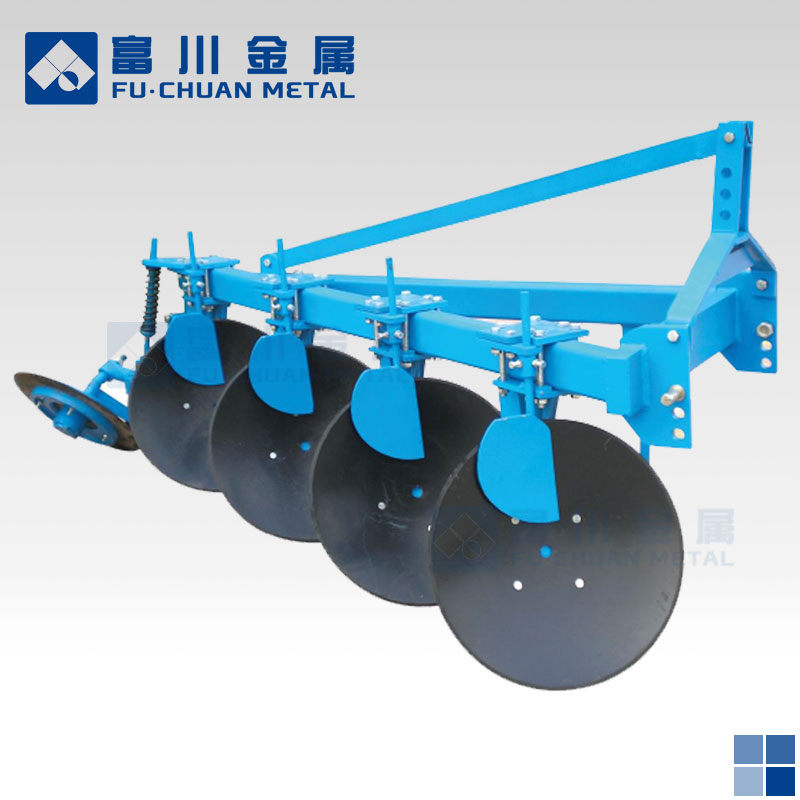

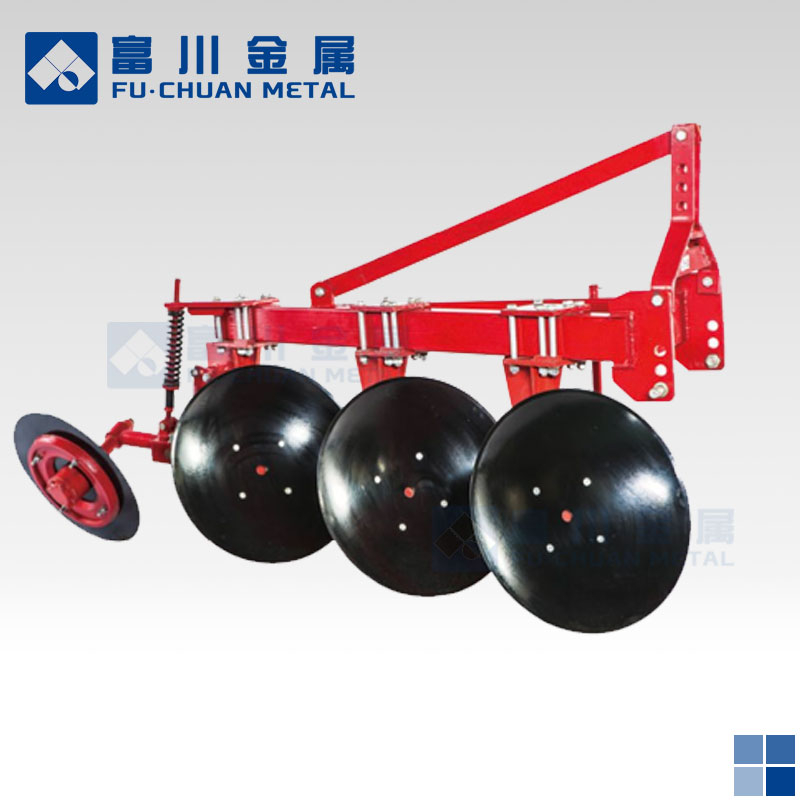

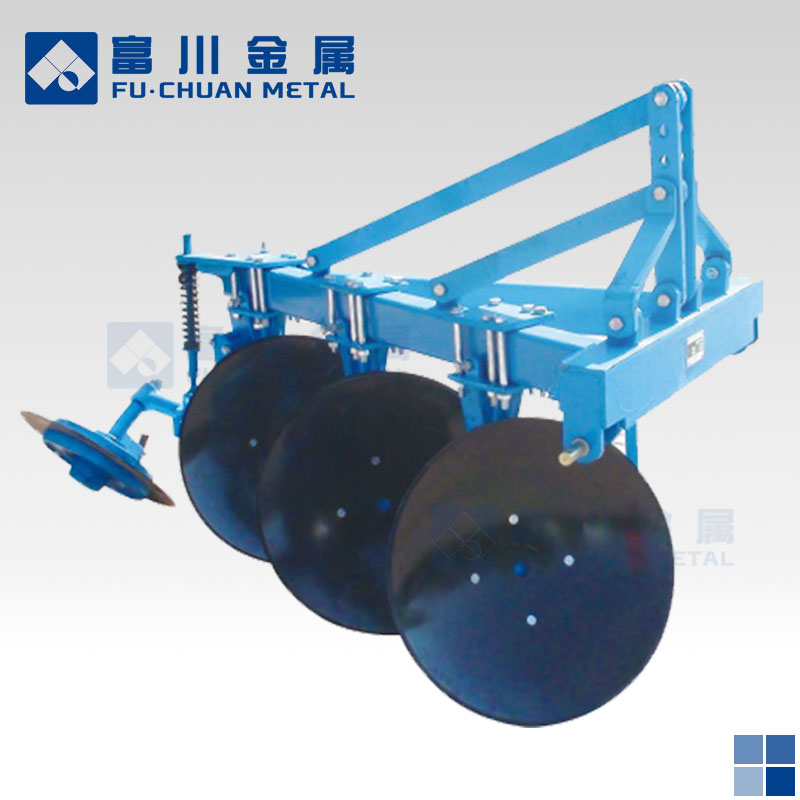

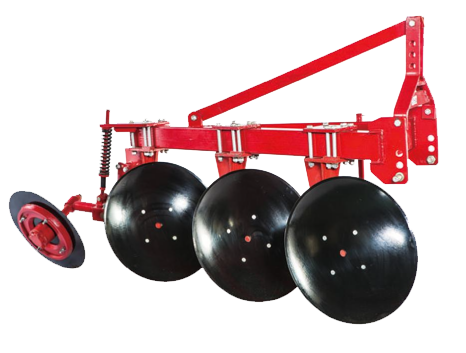

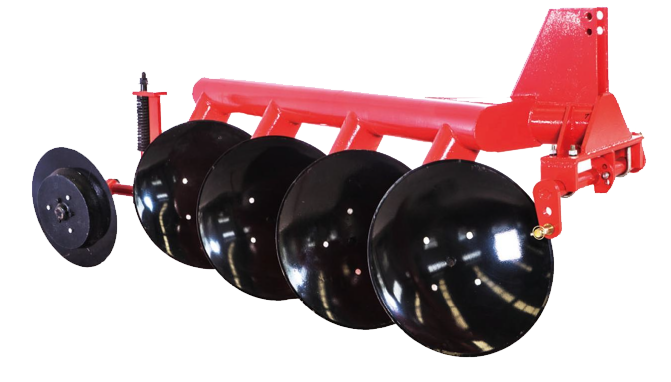

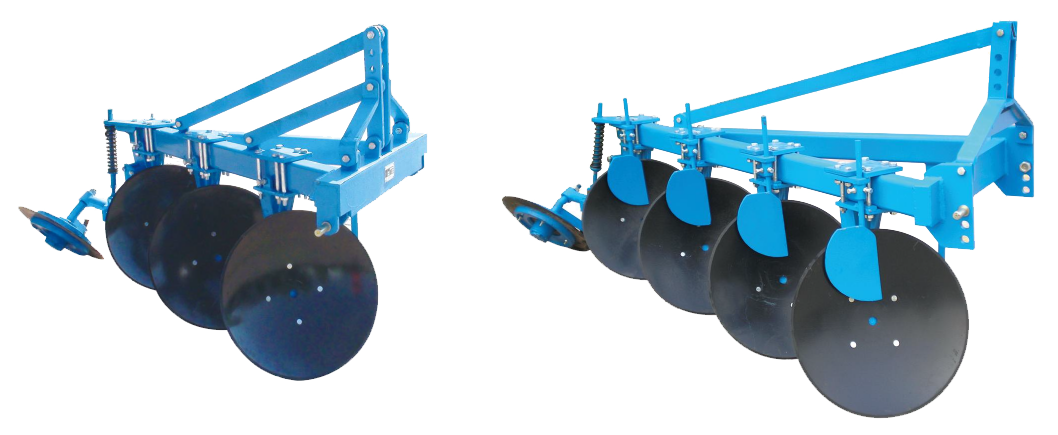

The one-way mounted disc plough is suitable for ploughing up the cultivated land as well as virgin land, especially on high yield's manure land, wheat and rice stubble fields. Good passing ability and penetration,complete inversion andcoverage.Moreover, the plough has the merits of lessworking resistance and easy to operate and adjust, etc.

one-way mounted disc plough

Model
Unit
1LY(T)-230
1LY(T)-330 1LY(T)-430
Matched powder
hp 45-60 55~80 90~110
Working width
mm 600 900 1200
Disc diameter
mm 710 710 710
Num. of discs
pcs
2 3 4
Working depth
mm
300 300 300
Weight
kg 380 440 520

one-way mounted disc plough

Model
Unit
1LYQ(T)-220 1LYQ(T)-320 1LYQ(T)-420 1LYQ(T)-520 1LYQ(T)-315
Matched powder
hp 25-40
50-60 40-70 70-80 45-60
Working width
mm 400 600 800 1000 450
Disc diameter
mm 510 510 510 510 460
Num. of discs
pcs
2 3 4 5 3
Working depth
mm
200 200 200 200 180
Weight
kg 150 200 260 330 180
Model
Unit
1LY(T)-225 1LY(T)-325 1LY(T)-425 1LY(T)-525 1LY(T)-625
Matched powder
hp 35-50 50-80 90-110 120-140 140-160
Working width
mm 500 750 1000 1250 1500
Disc diameter
mm 660 660 660 660 660
Num. of discs
pcs
2 3 4 5 6
Working depth
mm
250 250 250 250 250
Weight
kg 280 420 490 550 720

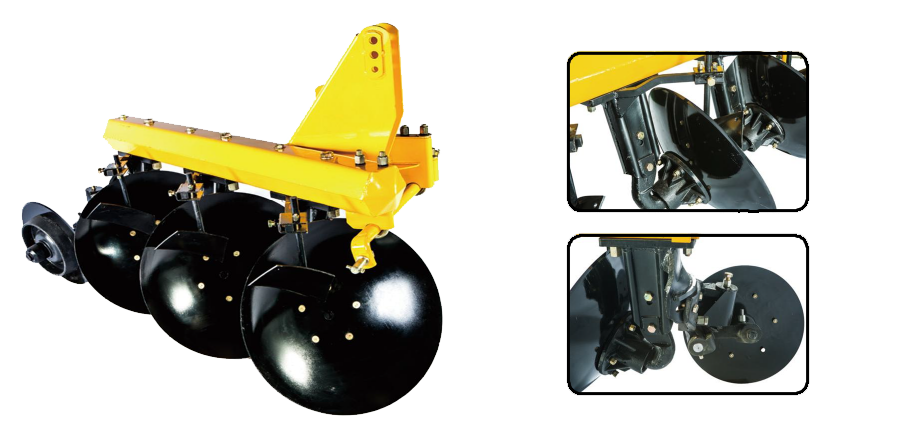

The 1LYX tube disc plough is completely mounted with tractor. In the operation process, the disc is rotating to turn the soil. Particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and breakbrickbat, etc. In the field, it is good at cutting grasses and straw, freefrom stopped by the grasses, soil or stones. etc. lt is efficient in thework. lt is of good quality during operation. lt is easy to adjust andstrong and durable.

tube disc plough design for field with straw

Model
Unit
1LYX-230
1LYX-330 1LYX-430 1LYX-530
Matched powder
hp 40~50 55~88 90~100 120~150
Working width
mm 600 900 1200 1500
Disc diameter
mm 660 660 660 660
Num. of discs
pcs
2 3 4 5
Working depth
mm
200~300 200~300 200~300 200~300
Weight
kg 300 430 480 550
Frame
Frame Type Tubular Seamless Steel Pipe

one-way mounted disc plough for loosing soil

Model
Unit
1LTS-2 1LTS-3 1LTS-4 1LTS-5
Matched powder
hp 45-55 60-70 80-90 100-120
Working width
mm 350 400 470 560
Disc diameter
mm 660 660 660 660
Num. of discs
pcs
2 3 4 5
Working depth
mm
150-300 150-300 150-300 150-300
Weight
kg 350 400 470 560
Frame
Frame Type Tubular Seamless Steel Pipe

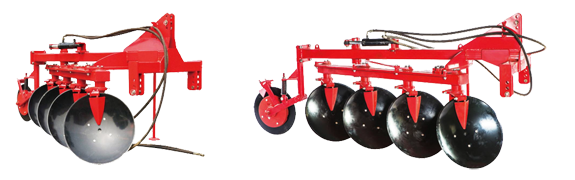

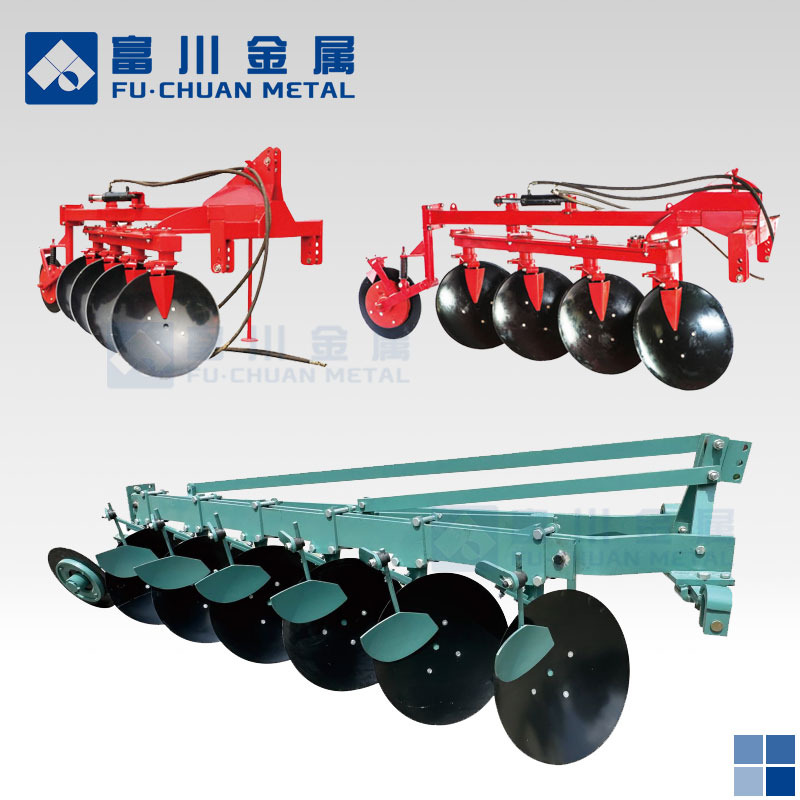

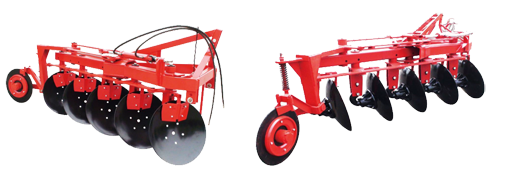

Two-way hydraulic turning disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough, but also have the characteristics of short idle distance oftravel on the edge of fields, high productivity, low oil consumption etc. They are also suitable for workingon terraced fields and small piece of farming land.

two-way hydraulic truning disc plough

Model
Unit
1LY(SX)-325 1LY(SX)-425 1LY(SX)-525 1LY(SX)-625
Matched powder
hp 50-80 80-100 100-120 120-150
Working width
mm 750 1000 1250 1500
Disc diameter
mm 660 660 660 660
Num. of discs
pcs
3 4 5 6
Working depth
mm

250-300

Weight
kg 620 700 830 950
Linkage Standard three point mounted

two-way adjustable hydraulic turning disc plough

Model
Unit
1LYDP-325 1LYDP-425 1LYDP-525 1LYDP-625
Matched powder
hp 50-80 80-100 100-120 120-150
Working width
mm 750 1000 1250 1500
Disc diameter
mm 660 660 660 660
Num. of discs
pcs
3 4 5 6
Working depth
mm
250-300 250-300 250-300 250-300
Weight
kg 620 700 830 950

hydraulic turning disc plough

Model
Unit
1LY(BX)-740 1LY(N)-225 1LY(N)-325 1LY(N)-425 1LY(N)-525 1LY(N)-625
Matched powder
hp >=150 35-50 55-65 80-100 120-140 140-160
Working width
mm 1200-2100 500 750 1000 1250 1500
Disc diameter
mm 710 660 660 660 660 660
Num. of discs
pcs
7 2 3 4 5 6
Working depth
mm
250 250 250 250 250 250

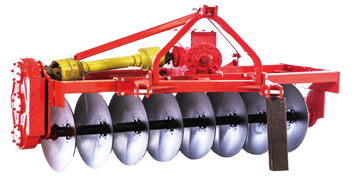

This agricultural tractor disc plow for paddy field. When it works in paddy-field it turns up soil to make soil up-tumed, in lines and level. Wheat and rice stubble and Chinese milk vetch are turmed down and buried in the field; they are easy to rotten and increasing the organiofertilizer of the filed. lt also has advantages of saving labor, working efficiently and low cost etc.

agricultural tractor disc plow for paddy field

Model
Unit
1LYQ-422 1LYQ-522 1LYQ-622 1LYQ-722 1LYQ-822
Matched powder
hp 18-22 25-30 40-50 50-60 60-70
Working width
mm 880 1100 1320 1540 1760
Num. of discs pcs 4 5 6 7 8
Rotating speed of input shaft r/min 540/720 540/720 540/720 540/720 540/720
Rotating speed of output shaft r/min 90-120 90-120 90-120 90-120 90-120
Working depth
mm
200-240 200-240 200-240 200-240 200-240
