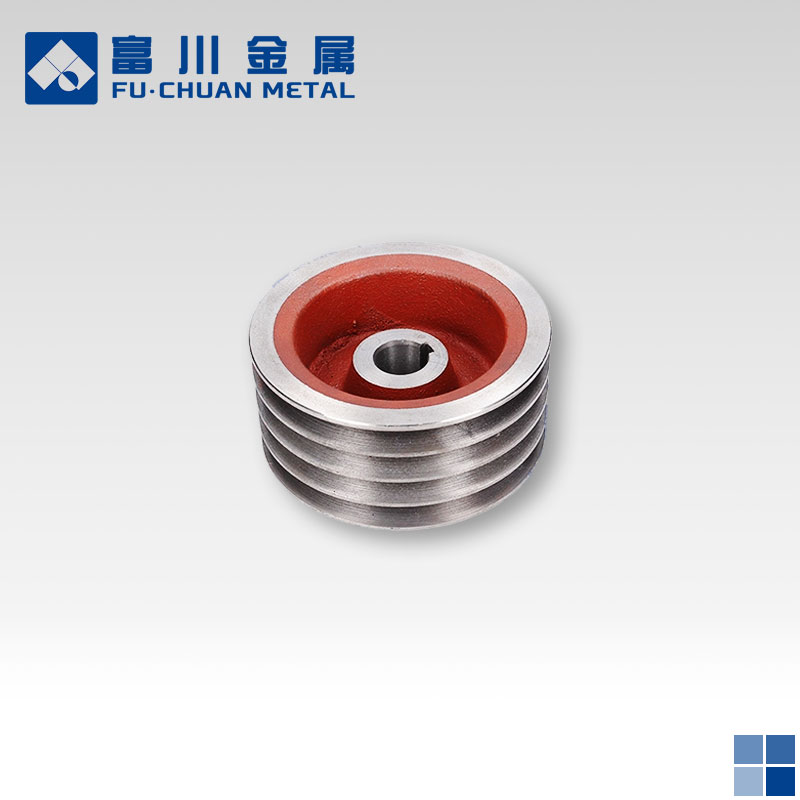

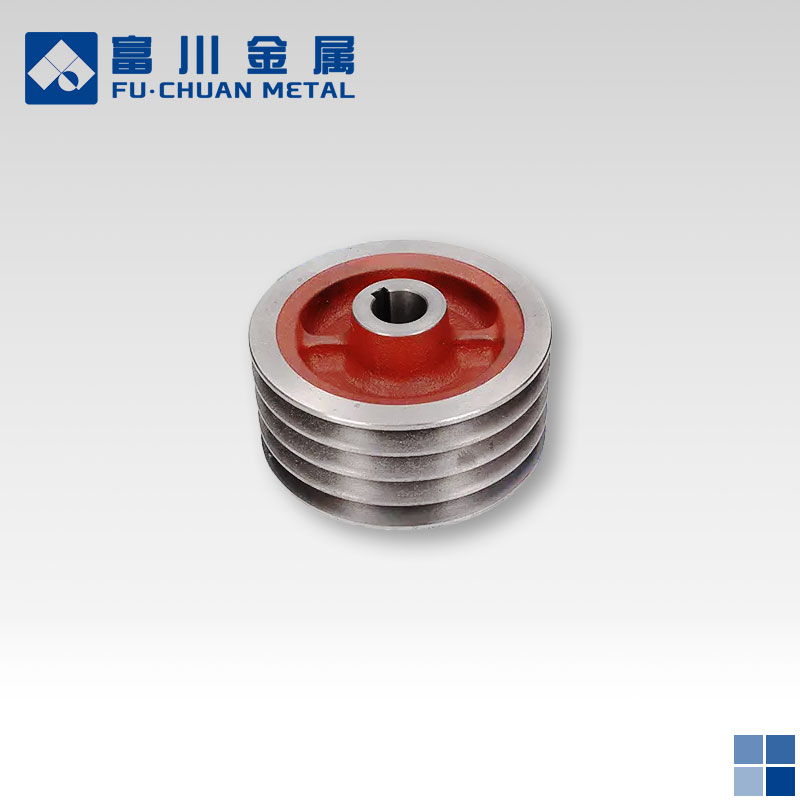

Small Pulley

Product: Small Pulley used for agri mowers

1. Material: pulleys are typically made from materials like cast iron, steel, or aluminum. Cast iron is often chosen for its durability and strength, while steel offers high tensile strength. Aluminum is lighter but still provides good strength-to-weight ratio.

2. Casting or Machining:

Steel pulleys, machining from a solid billet is common. The billet is turned on a lathe to create the cylindrical shape, and then the grooves and other features are cut using milling machines.

3. Surface Treatment: to prevent corrosion, pulleys may undergo surface treatments such as painting, powder coating, or plating (e.g., zinc plating).

4. Assembly: additional components like bushings or keyways are installed to ensure proper alignment and torque transmission.

Small pulley function in an agricultural mower

1. Power Transmission: the primary function of the pulley is to transmit power from the tractor's power take-off (PTO) to the mower's cutting components. It does this through a belt-and-pulley system. The pulley on the tractor's PTO drives a belt, which in turn drives the pulley on the mower, causing the cutting blades or discs to rotate.

2. Speed and Torque Conversion: pulleys can be used to change the speed and torque of the output. By using pulleys of different diameters, the rotational speed and torque can be adjusted to suit the cutting requirements. For example, a smaller pulley driving a larger pulley will reduce speed but increase torque, which is useful for heavy-duty cutting.

3. Belt Tensioning: the pulley design often includes features to maintain proper belt tension. Proper tension is crucial for efficient power transmission and to prevent belt slippage.

Functional Characteristics of Pulleys

1. Grooved Design: the grooves on the pulley are designed to hold the drive belt securely. The shape and number of grooves are designed to match the type and number of belts used.

2. Durability: pulleys are designed to withstand the harsh conditions of agricultural environments, including dust, dirt, and exposure to the elements.

3. Alignment and Balance: proper alignment and balance are crucial to prevent vibrations and premature wear. The central bore and keyway ensure proper alignment with the shaft, and the pulley is balanced during manufacturing to reduce vibrations.
